Innovation

Our innovations give you great reasons to choose a Life Line Emergency vehicle. Every Life Line ambulance is full of hidden details that our customers say make a big difference. Place your cursor over the hotspots to reveal why “the next generation of ambulances will follow our lead.”

Walls

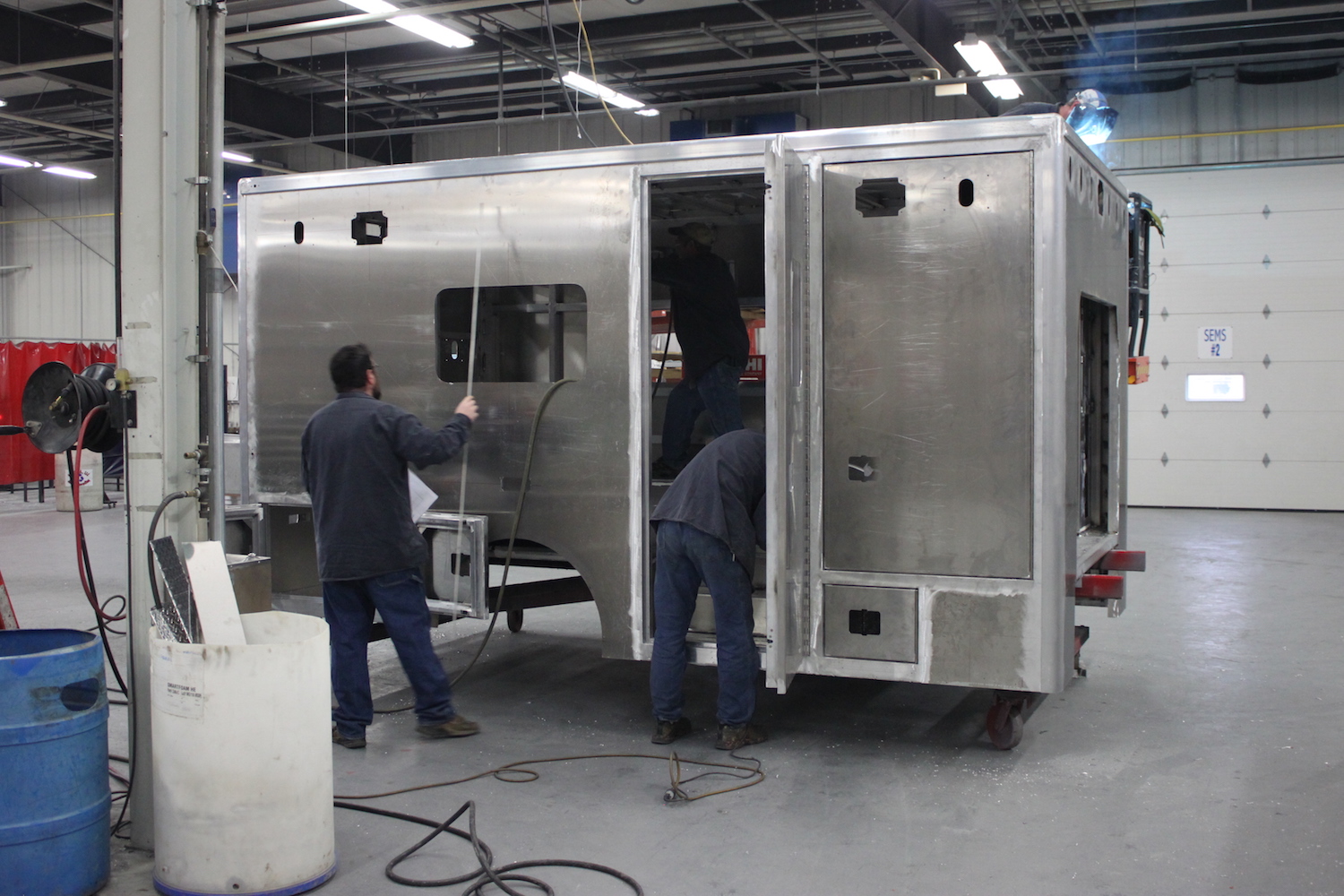

Life Line bodies are designed to maximize impact resistance and passenger safety. All four walls are constructed using extruded "X-Frame" corner posts with 2"x2"x.125" and 2"x3"x.125" extruded rectangular aluminum framing. Voids between framing members are filled with 2" thick plank Certi-Foam insulation and covered by the 4 mil. vapor barrier. A .125" thick aluminum outer skin surrounds the patient and crew.

Elite G3

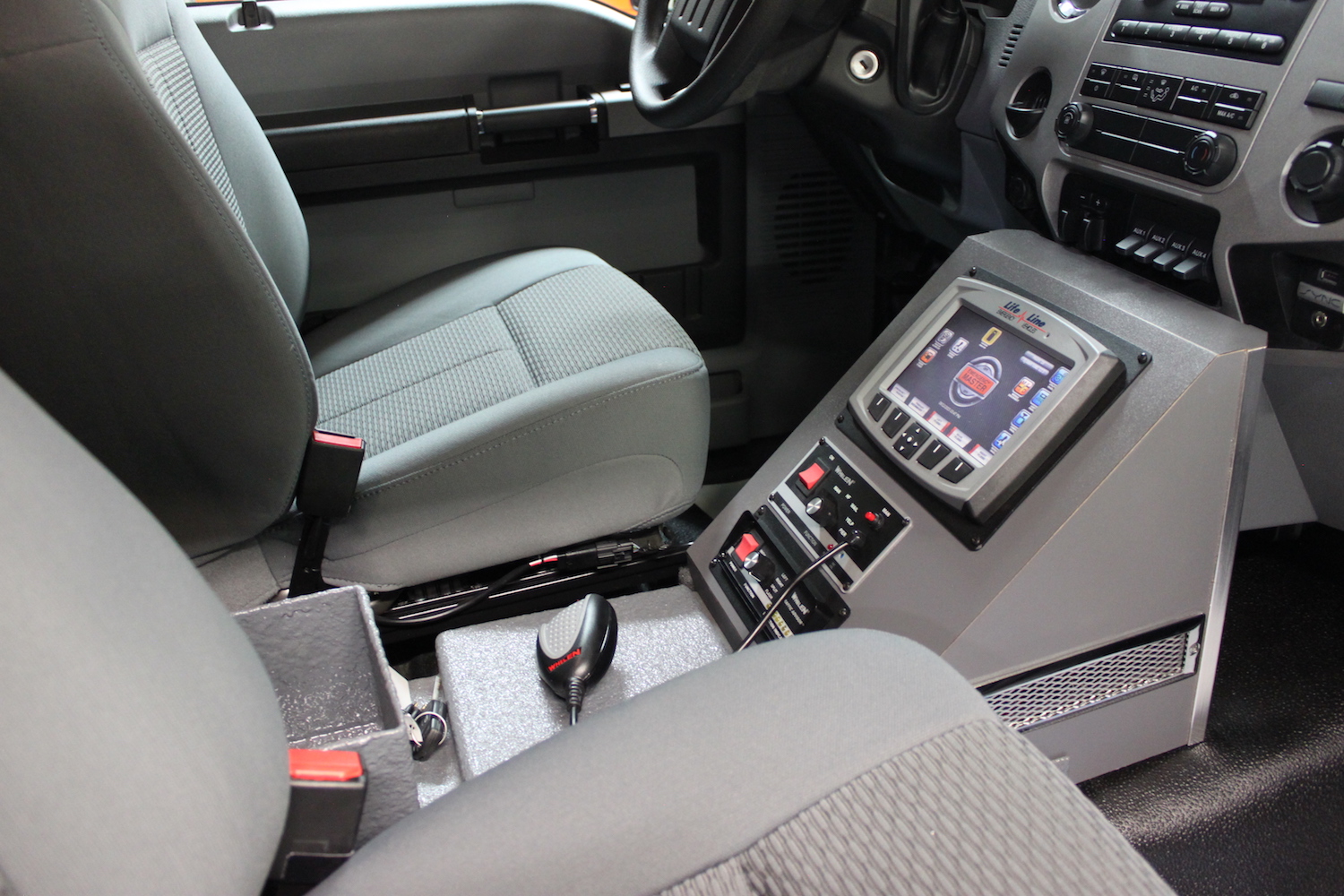

The Life Line Elite Touch System is designed for maximum flexibilty to meet the end users' needs. With its standard touch screen and quick-hit buttons, interchangeable modules, real-time monitoring and backwards compatibility, this system is second to none. Click for more information.

Bumper

Life Line's well-known angled bumper pods with 4" aluminum channel and 2x2 tube construction.

Floor

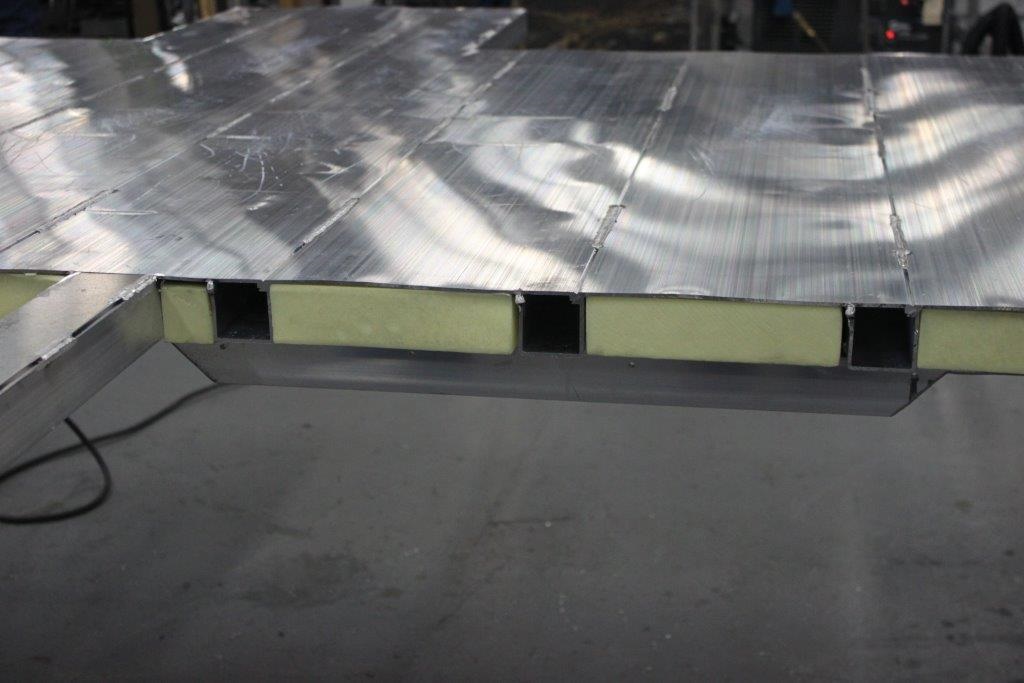

Life Line features an interlocking double aluminum floor, built on 10" centers for the quietest ride in the ambulance industry. 2" thick plank Certi-Foam insulation is sandwiched between a .125" aluminum sub-floor and covered by heavy duty underlayment and commercial grade flooring. Underside is sheathed with .050" aluminum sheeting and edge-sealed using auto body sealant, providing an excellent surface for undercoating.

Doors

Life Line bodies are designed to maximize impact resistance and passenger safety. All four walls are constructed using extruded "X-Frame" corner posts with 2"x2"x.125" and 2"x3"x.125" extruded rectangular aluminum framing. Voids between framing members are filled with 2" thick plank foam insulation and covered by the 4 mil. vapor barrier. A .125" thick aluminum outer skin surrounds the patient and crew.

Roof

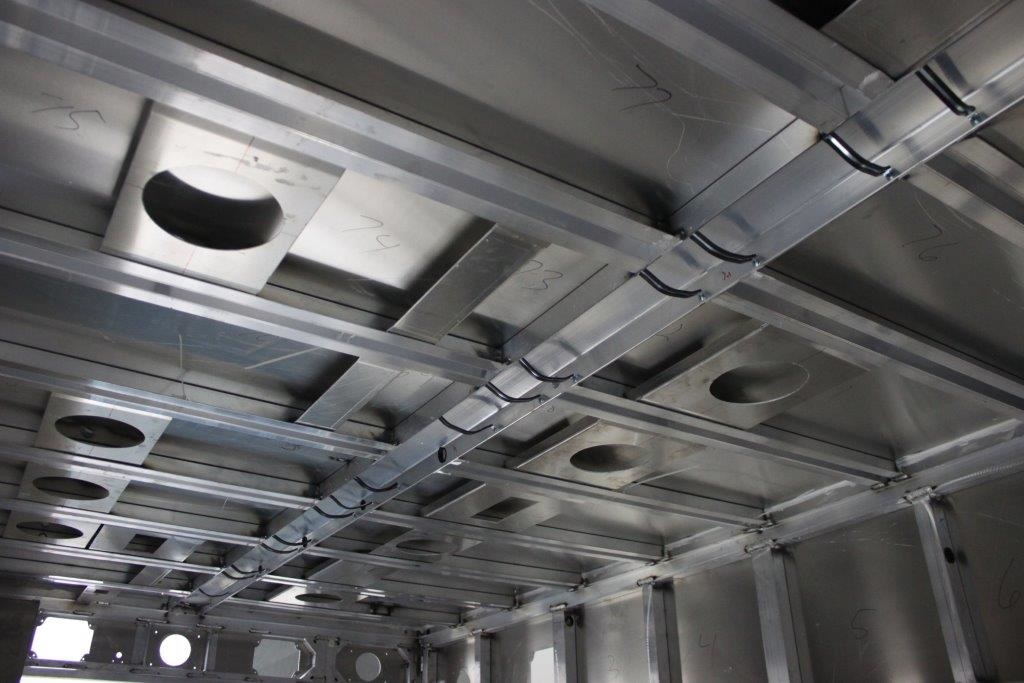

Life Line bodies are designed to maximize impact resistance and passenger safety. All four walls are constructed using extruded "X-Frame" corner posts with 2"x2"x.125" and 2"x3"x.125" extruded rectangular aluminum framing. Voids between framing members are filled with 2" thick plank Certi-Foam insulation and covered by the 4 mil. vapor barrier. A .125" thick aluminum outer skin surrounds the patient and crew.

Crash Rail

Every vehicle we build features the Life Line Crash Rail System, designed to absorb impact and minimize damage. It surrounds the ambulance with a rigid, two-piece extruded aluminum rail mounted to a solid aluminum 2"x3"x.125" rectangular extrusion.

Hinge

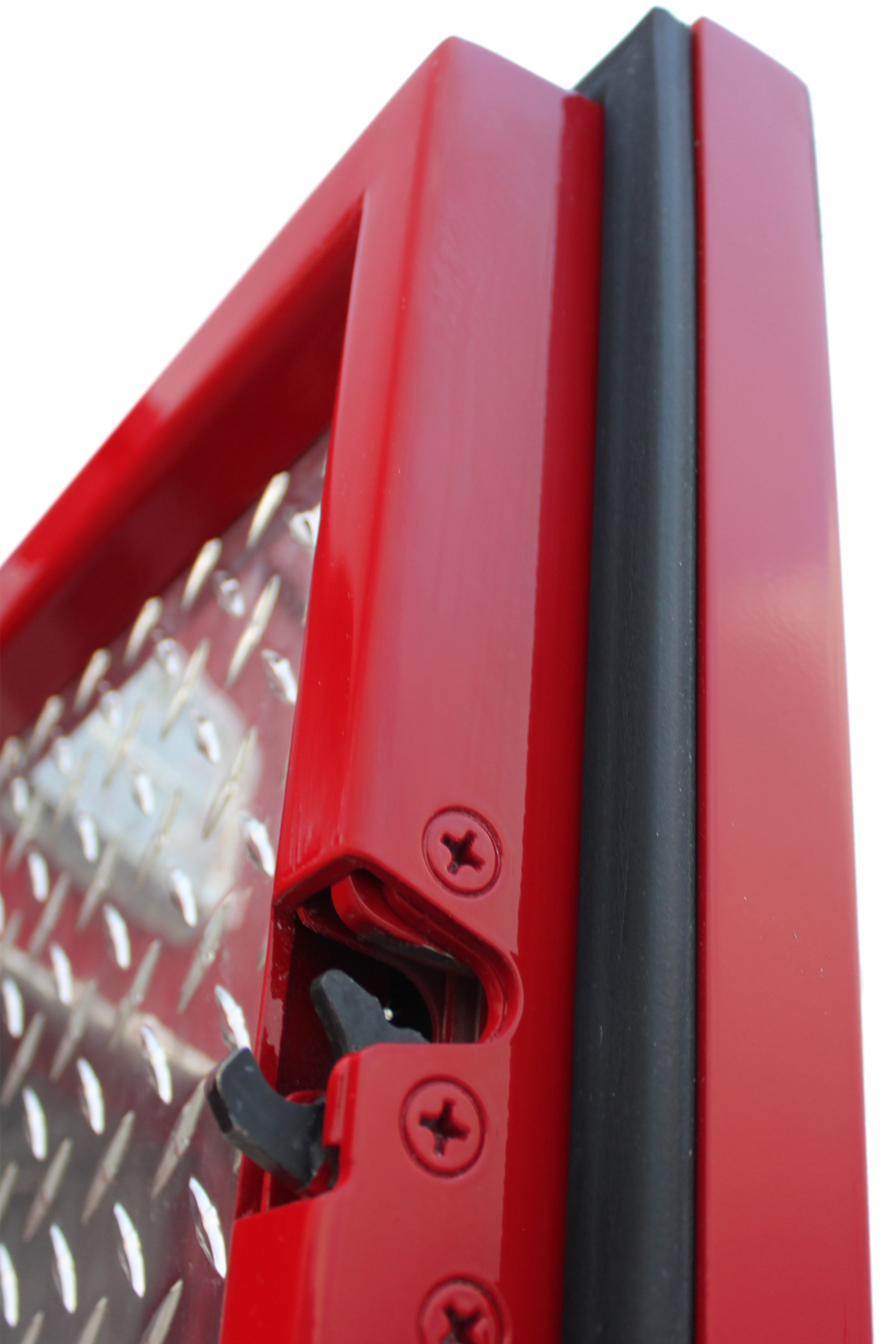

The "widest in the industry" 3" hinge on all of Life Line's doors. Anchored to both door & module using nutserts.

Paint

Axalta's high performance coatings are used in a five-step polyurethane paint process that ensures long-term durability and brilliance. The Axalta warranty program covers all Life Line painting.

Triple Hollow

Our triple hollow, 188" thickness is fore and aft of the wheel well in both the floor and wall structures. This adds strength and rigidity to the module's side impact resistance for optimal occupant protection.

Diamond Plate

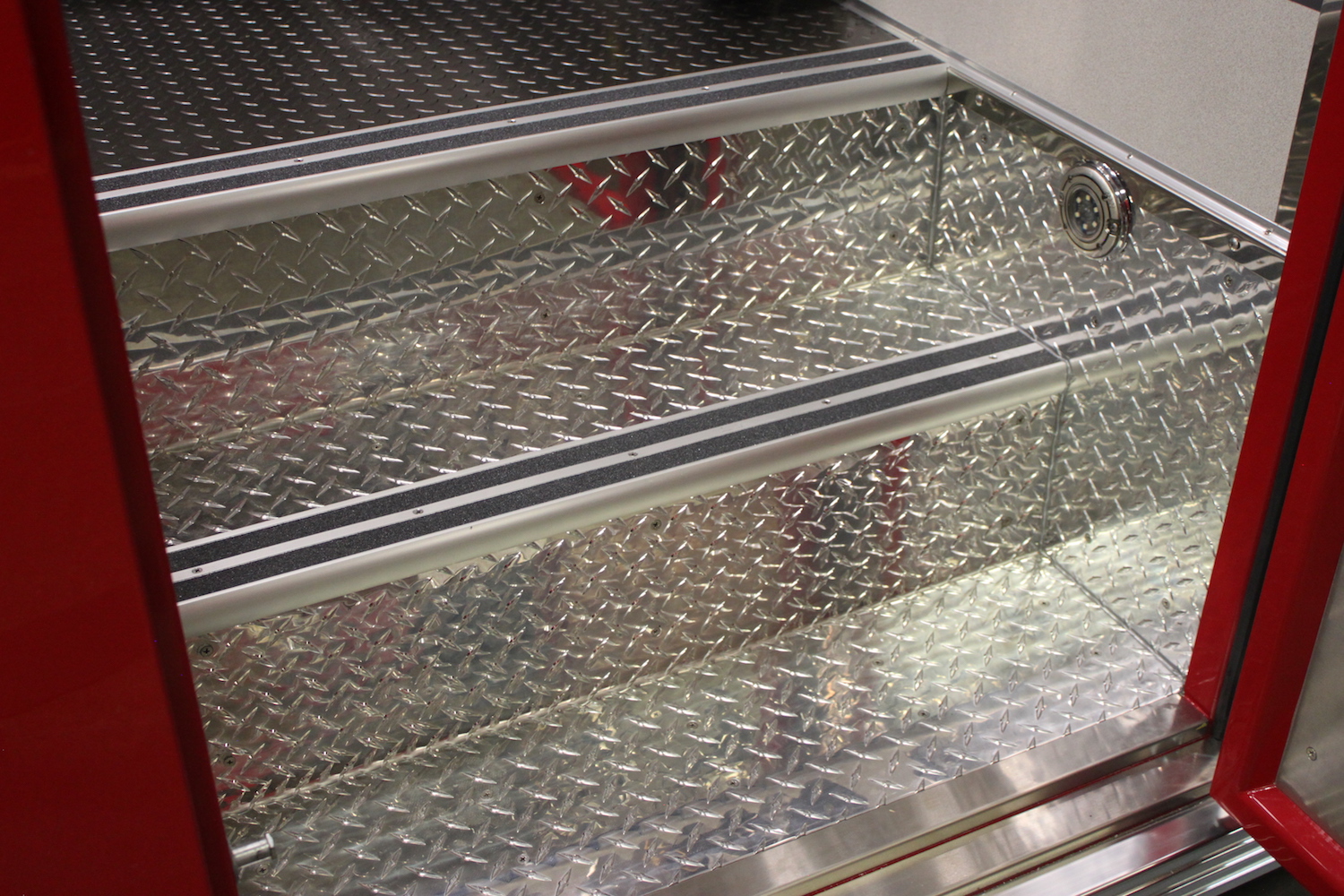

Life Line ambulances feature heavy duty diamond plate aluminum running boards, side entry step wells, rear bumper and stone shields.

Triple Hollow

Our triple hollow, 188" thickness is fore and aft of the wheel well in both the floor and wall structures. This adds strength and rigidity to the module's side impact resistance for optimal occupant protection.

Learn about our full range of safety features with Life Line’s IMS.
