Critical Care/ECMO

Critical Care/ECMO Ambulance

Critical Care/ECMO Ambulance

Special Services, Critical Care Vehicle

Pushing the envelope for what is possible in pre-hospital treatment, Life Line, The Center for Resuscitation Medicine of University of Minnesota Twin Cities and 94 Services of Monticello, MN teamed up to build the “first of its kind” mobile unit for emergency cardiac arrest care utilizing ECMO ability to increase the survival rate of patients in cardiac arrest in a pre-hospital setting. This would potentially save hours that it would normally take to get a patient in cardiac arrest to a hospital able to perform this procedure. With safety and reliability in mind, this groundbreaking unit features:

  • Custom 330″ Module with 87″ Headroom

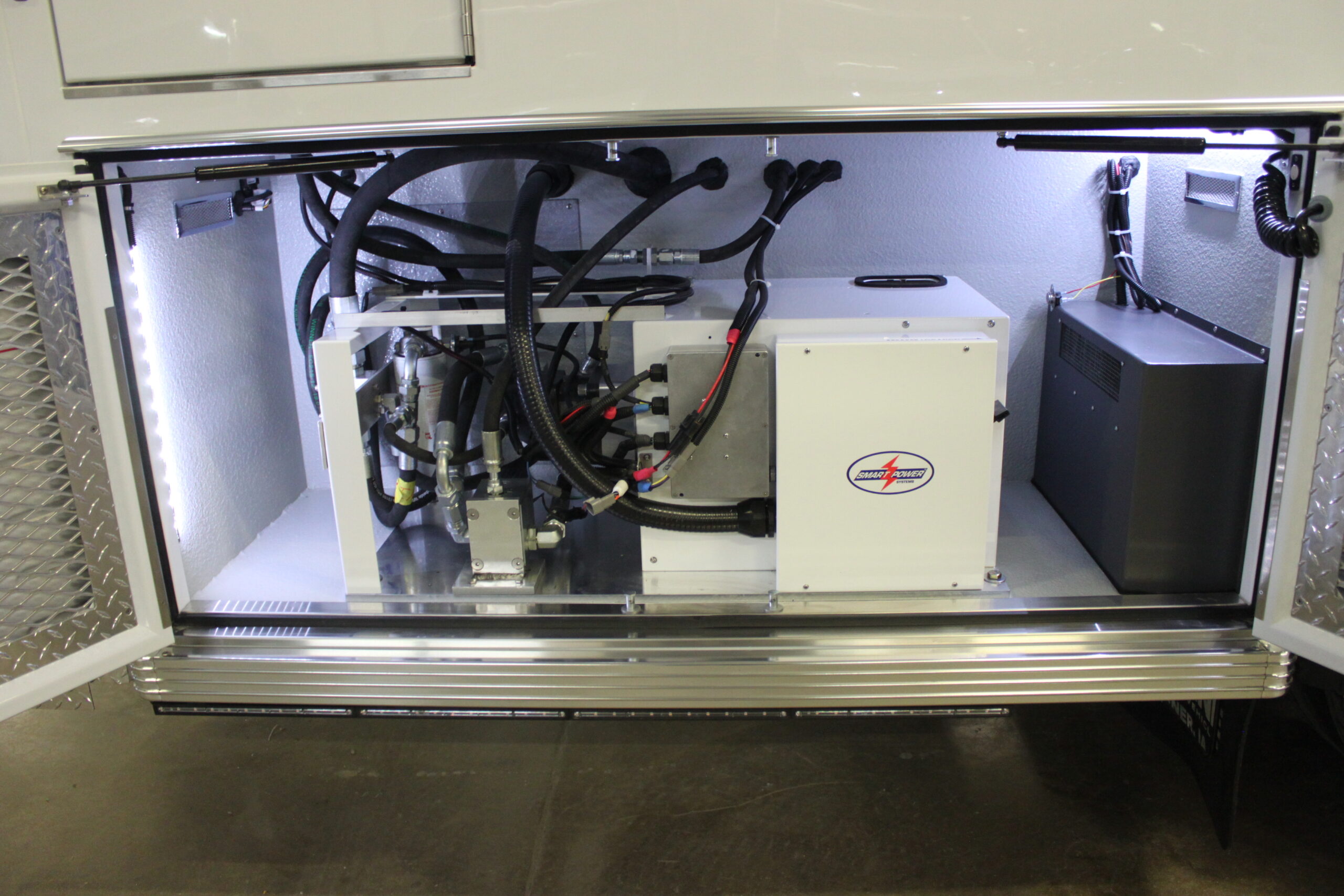

  • 30kw Hydraulic Generator

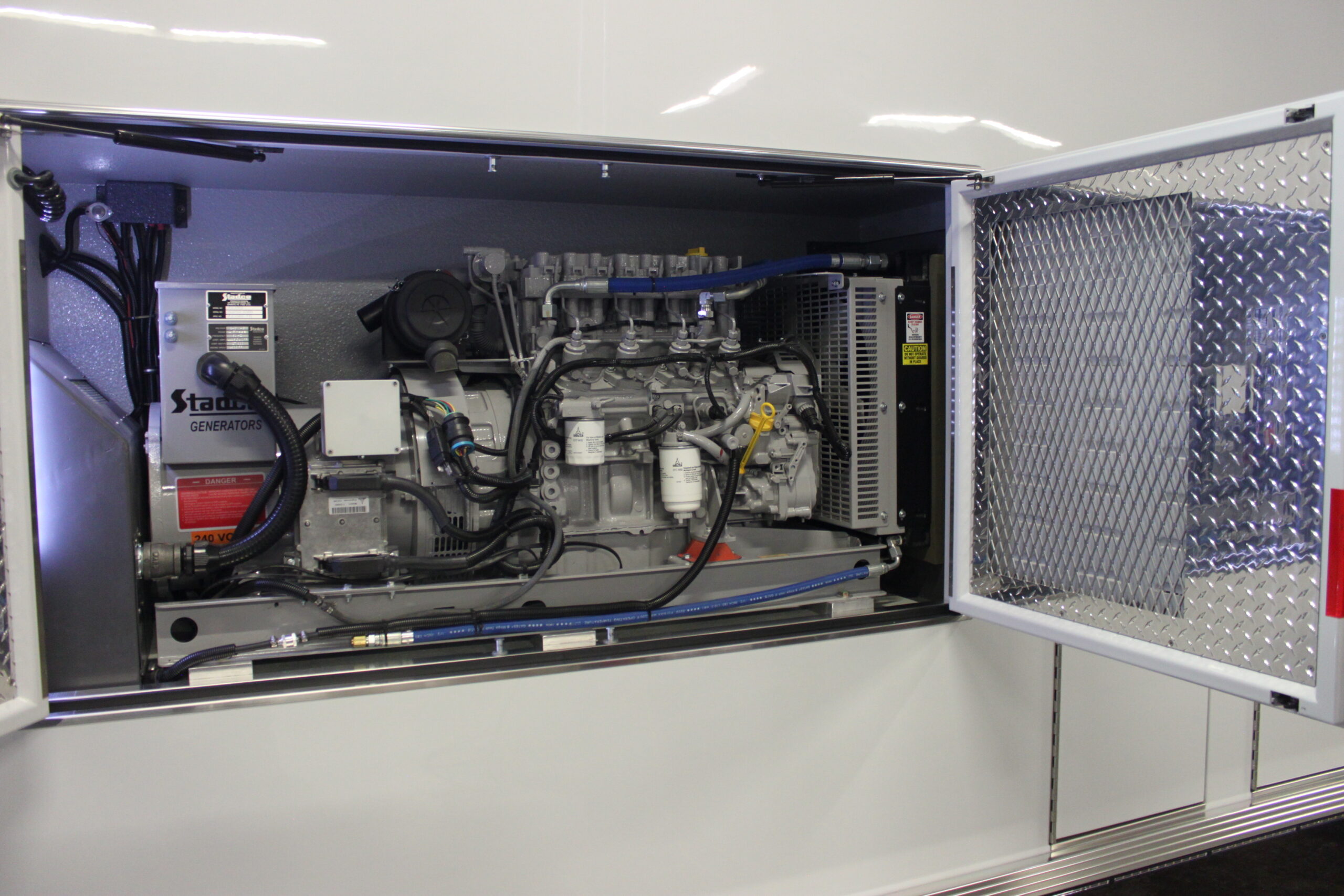

  • 30kw Diesel Driven Stadco Generators back-up generator

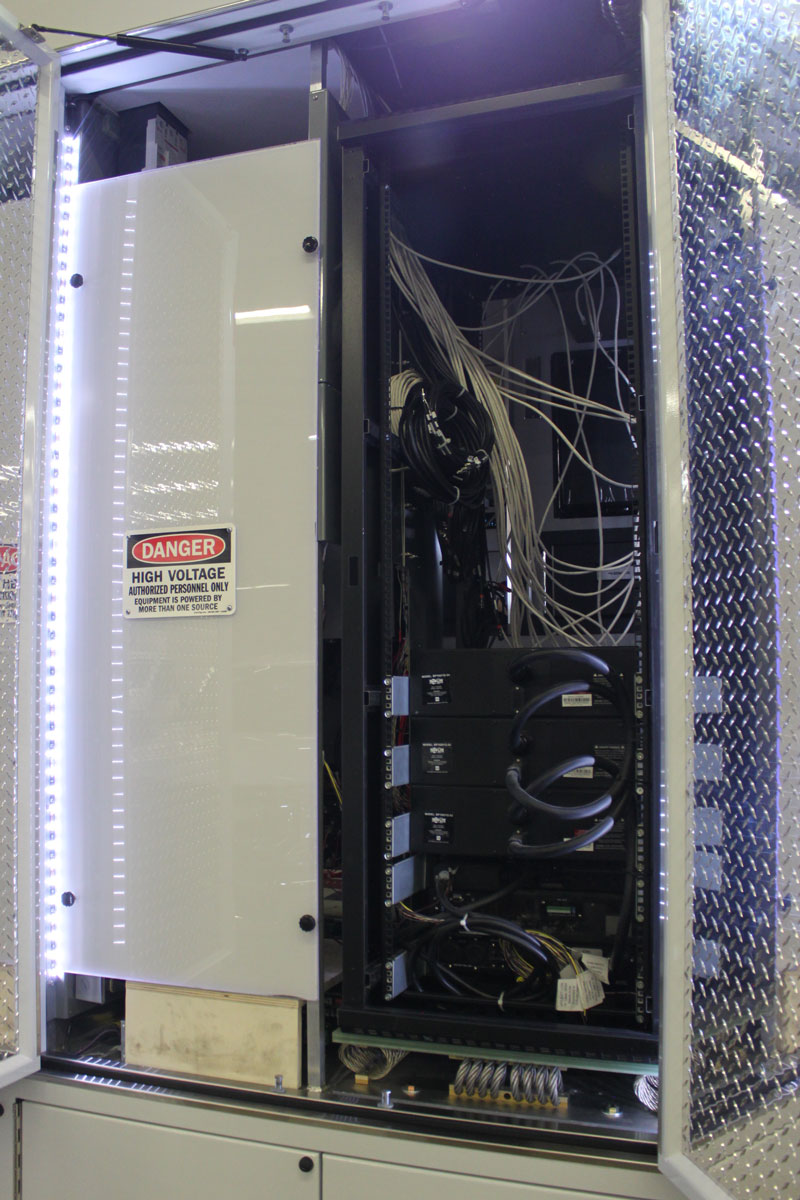

  • Tripp Lite uninterrupted power supply with (3) back up batteries
  • Dual Dometic roof top heat pump style HVAC for the module interior
  • Additional AC compressor on chassis motor
  • Dual Hoseline HVAC units for the module interior

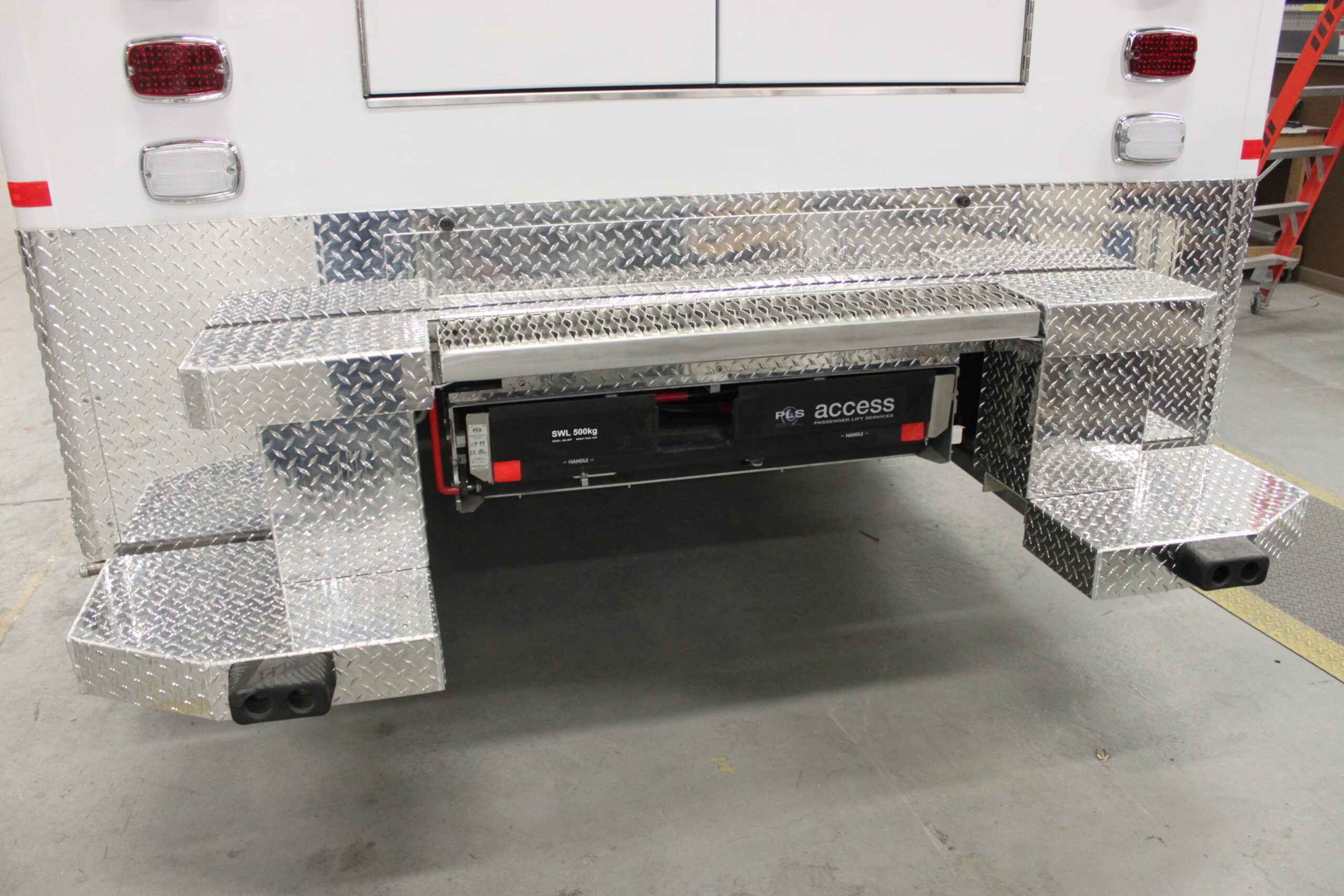

  • Custom rear patient lift system to load patient

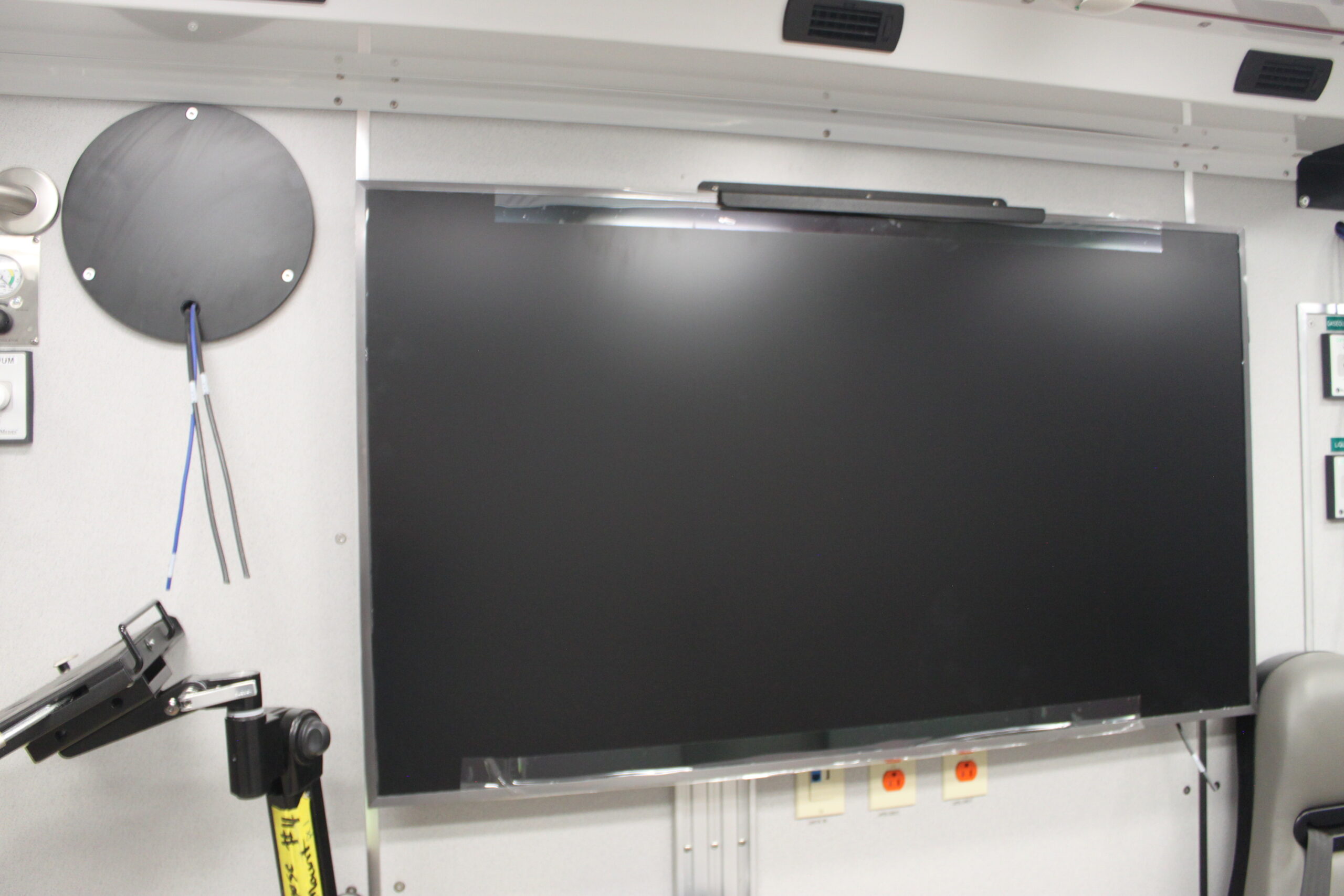

  • Provisions for 3D telemedicine camera system to transmit procedures live to a remote hospital

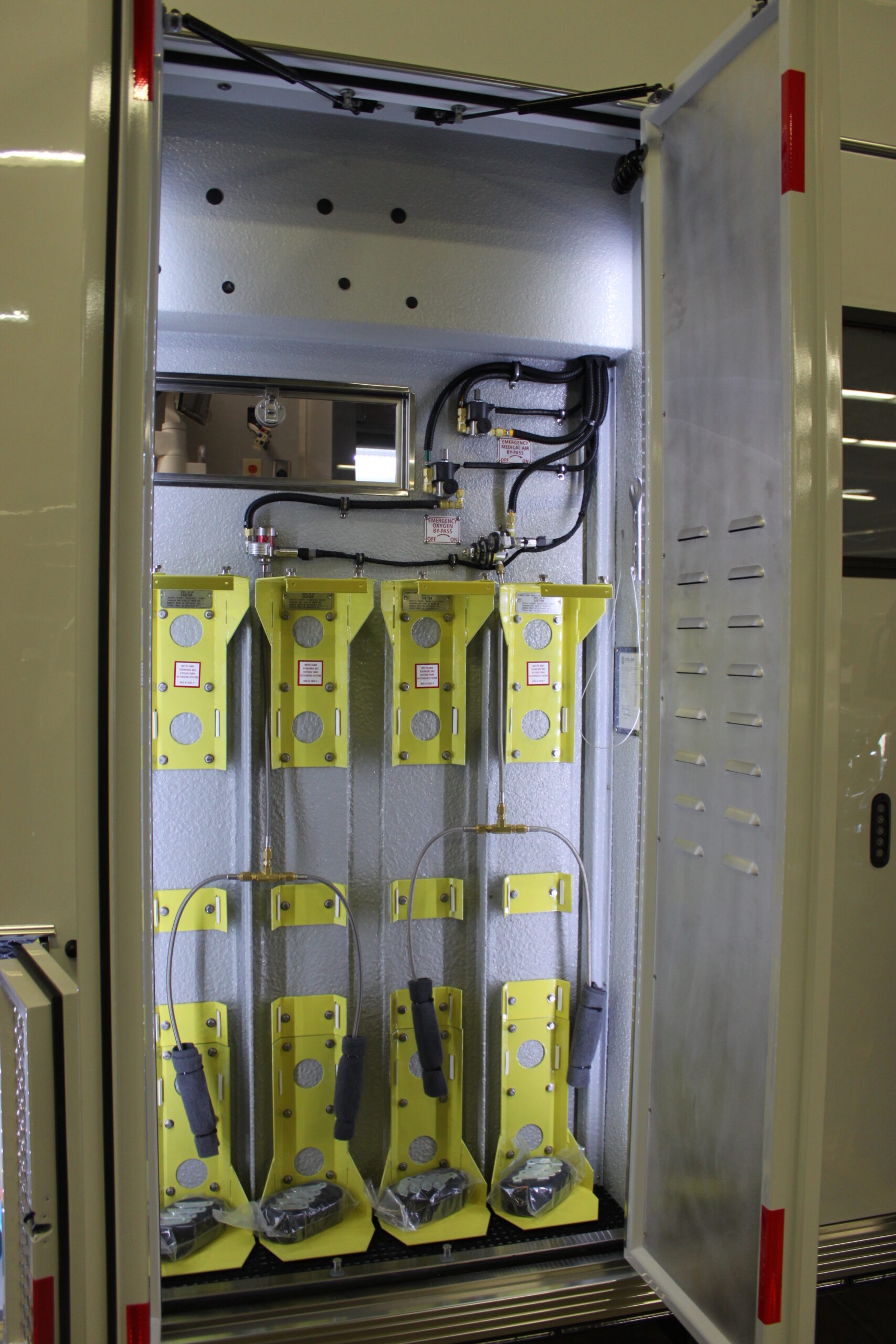

  • Dual “H” oxygen cylinders
  • Dual “H” size medical air cylinders
  • Back-up 25 lite liquid oxygen system
  • Back-up medical air compressor
  • Sink with hot and cold running water and 15-gallon freshwater tank
  • Custom interior lighting
  • Custom warning light package
  • Custom 150amp shoreline inlet

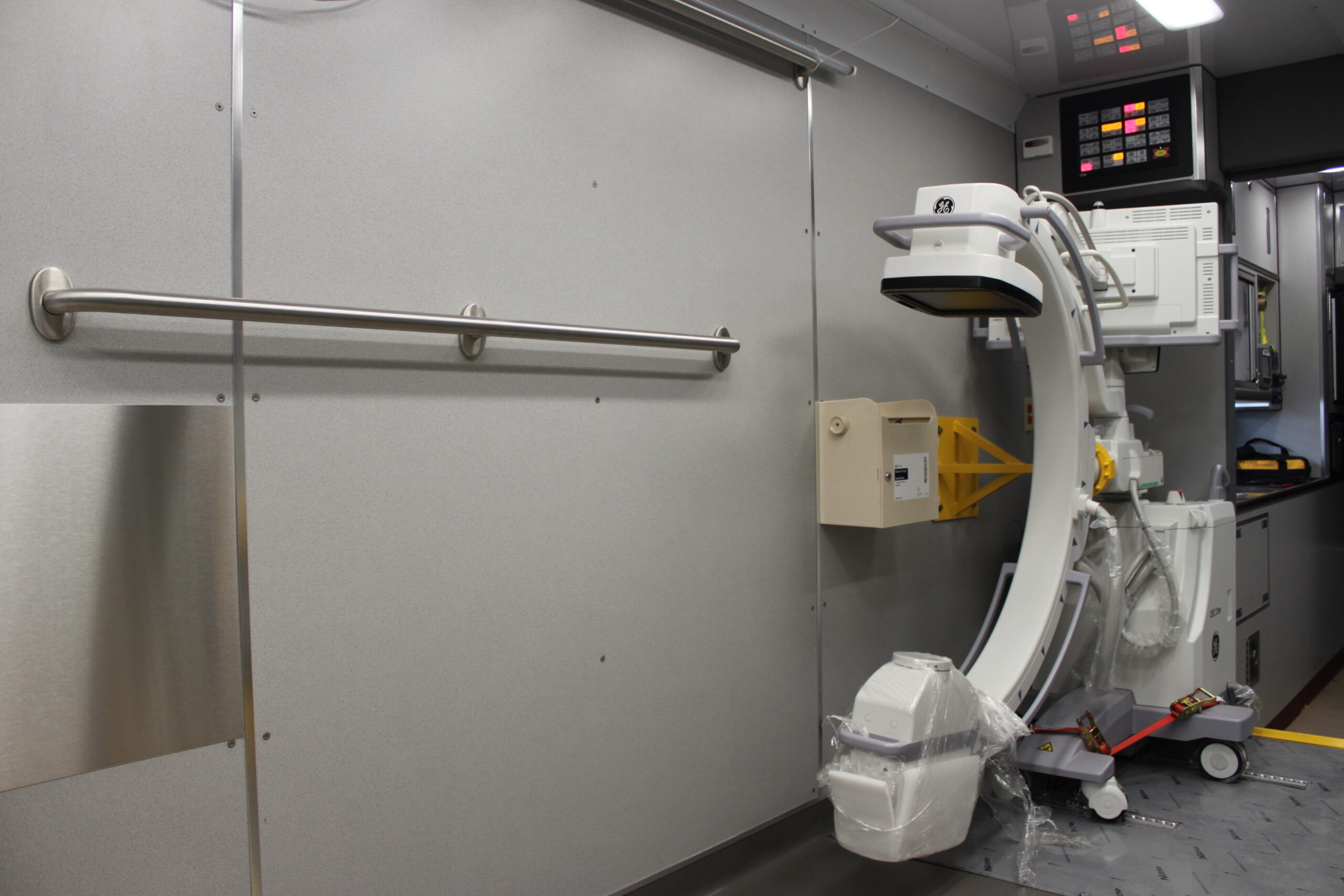

  • Provisions for “C” Arm X-ray

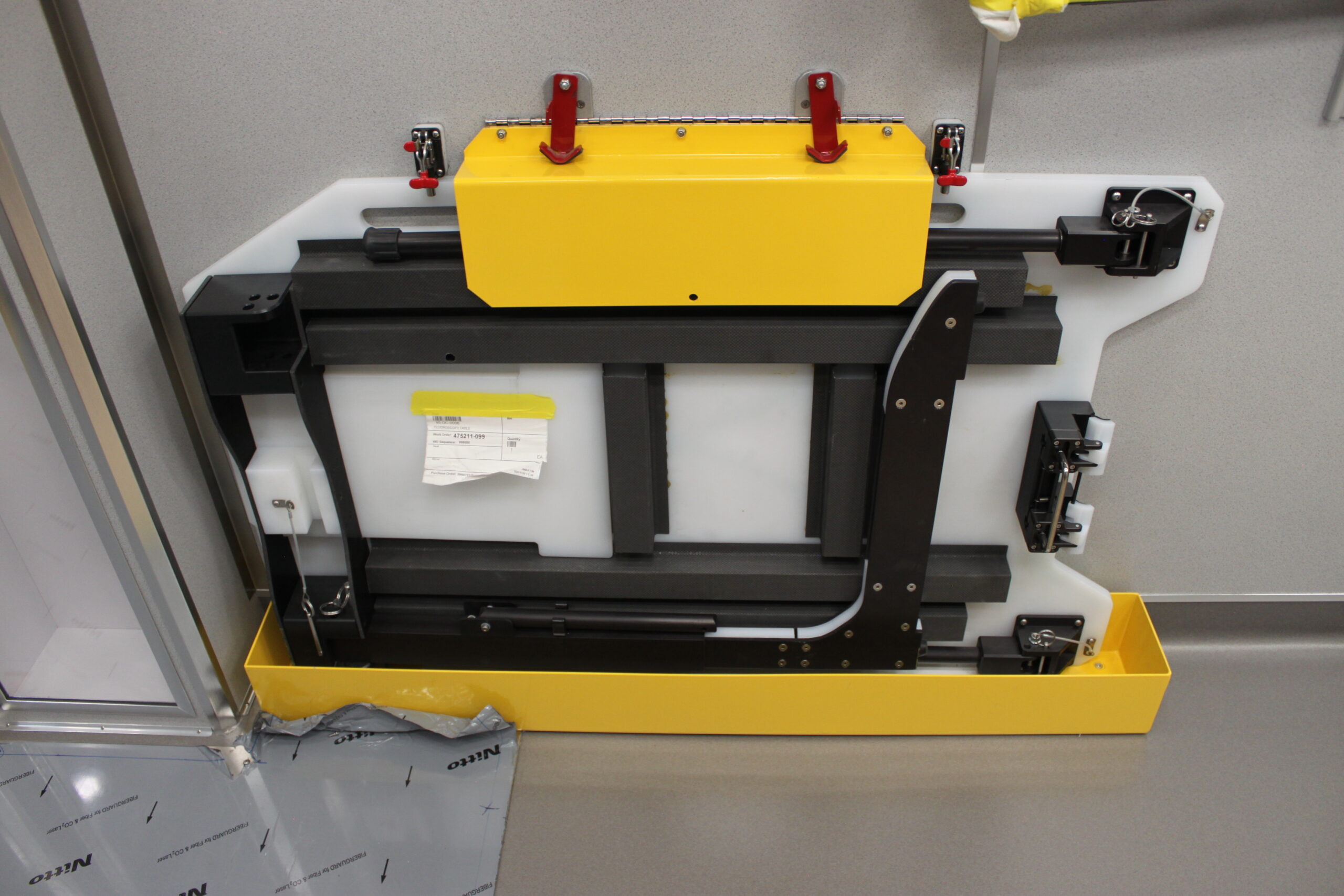

  • Folding fluoroscopy table
  • Mount for ultrasound equipment
